Products

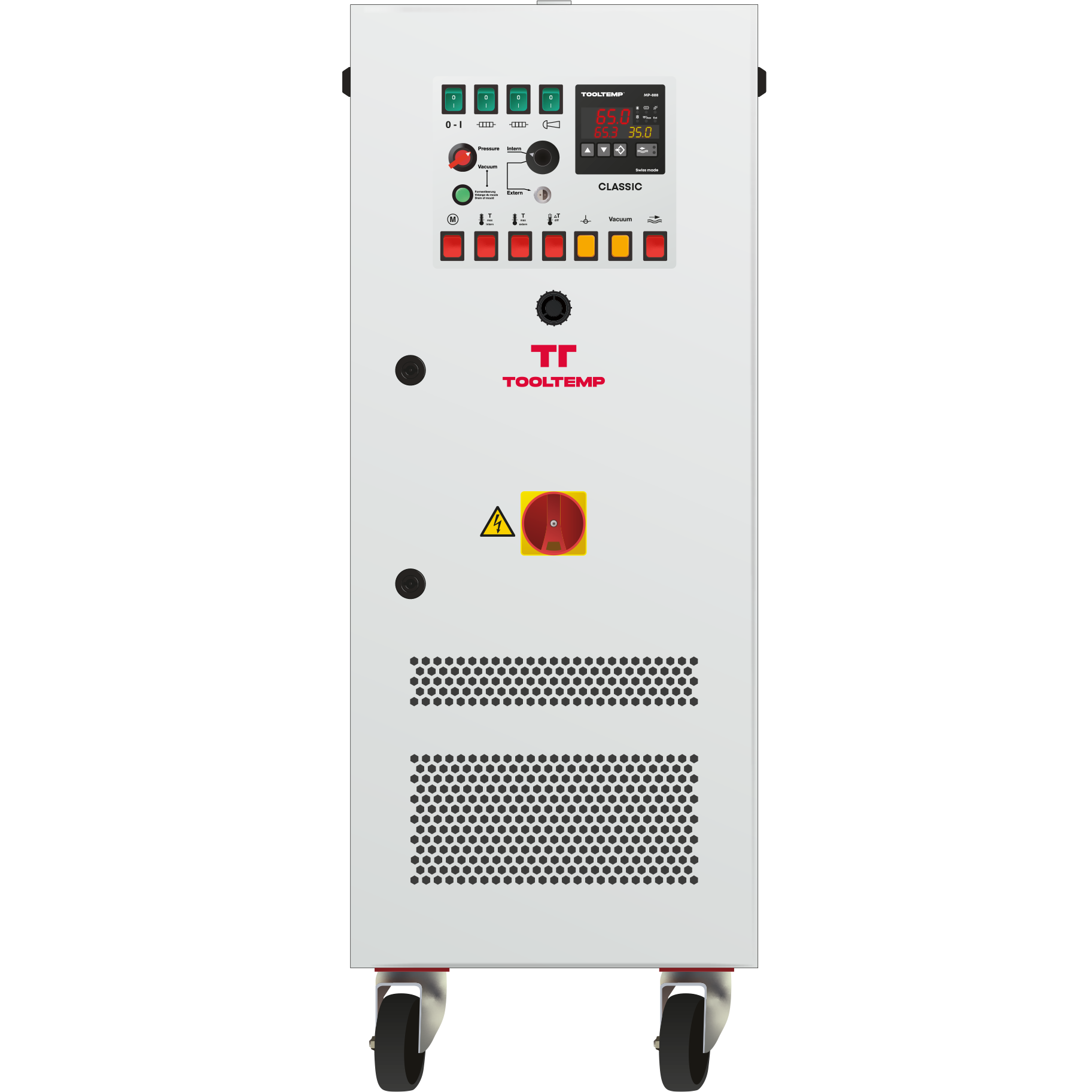

CLASSIC Series

The CLASSIC series is equipped with the standard controller MP-888 or the digital interface controller MP-988. These devices are the ideal solution when the task of the unit is limited to its essential function of regulating the circulating medium.

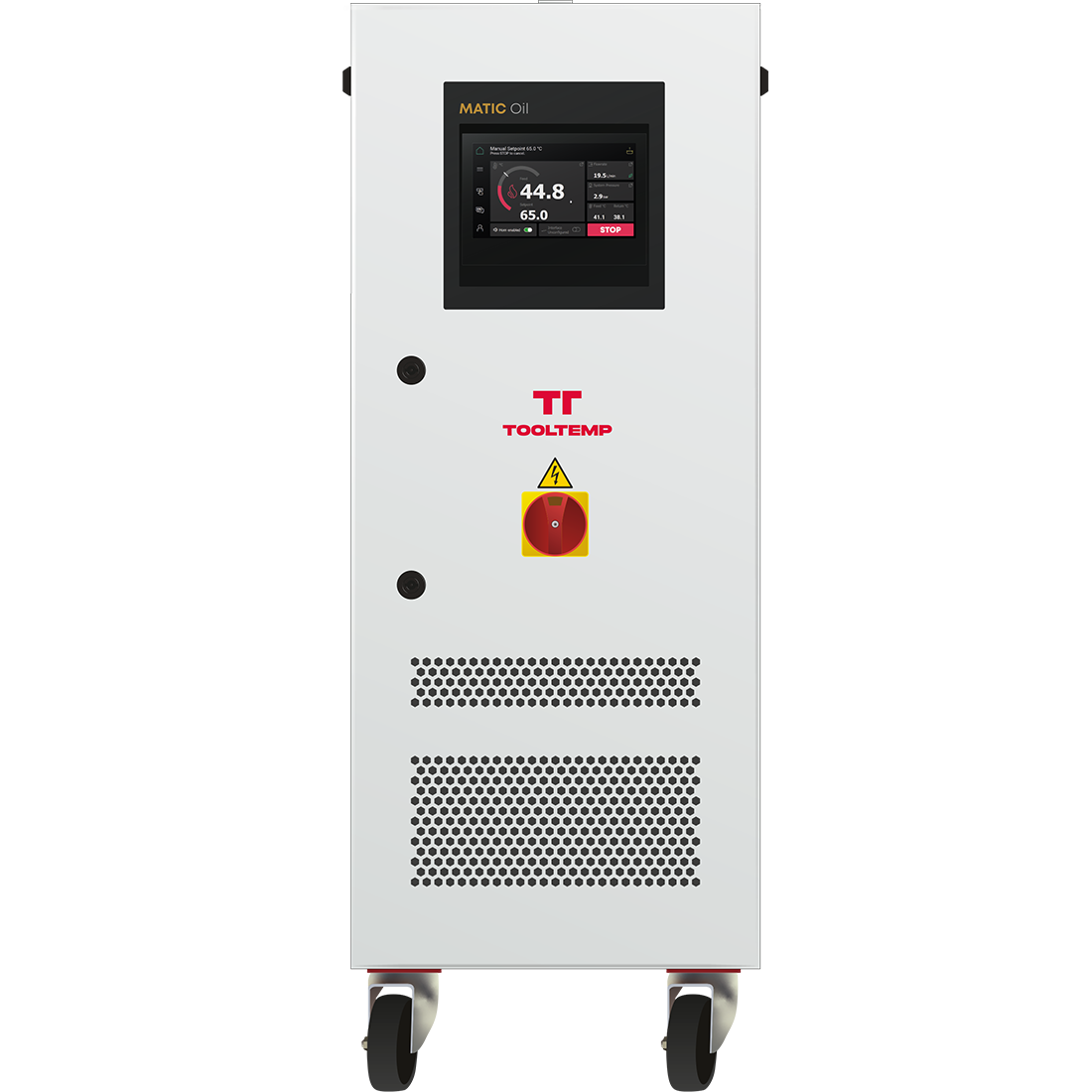

MATIC Series

The temperature control units of the MATIC series meet all requirements set by automated production environments. This product line is equipped with the new IRIS controller developed by Tool-Temp. It offers the full spectrum of connectivity, from classic digital and analog interfaces to all common serial and fieldbus interfaces, up to the latest industrial network protocols (Profinet, EtherNet/IP).

	Max. temperature Water	Max. temperature OIL	Max. filling amount	Heating capacity Water	Heating capacity OIL	Pump capacity	Pump pressure	Cooling tubular heat exchanger	Cooling plate heat exchanger	Cooling direct	At flow temperature	Suction capacity	Controller	Temperature sensor
								Kühlung
Unit/designation	°F	°F	gal	kW	kW	gpm	psi	kW	kW	kW	°F	inHg
CLASSIC Duo TT-181 9 kW	194	302	1.85	9	3	15.85	58	35	-	-	194	-	MP-888	FeKo Type J	Show Product
CLASSIC Duo TT-188 9 kW	194	302	1.85	9	3	15.85	58	35	-	-	194	-	MP-888	FeKo Type J	Show Product
CLASSIC Duo TT-168 E 12 kW	194	302	5.28	12	6	15.85	58	45	-	-	194	-	MP-888	Feko Type J	Show Product
CLASSIC Duo TT-168 H 12 kW	194	302	5.28	12	6	15.85	102	45	-	-	194	-	MP-888	FeKo Type J	Show Product
MATIC Duo 90/150 9 E	194	302	1.85	9	9	15.85	58	35	-	-	194	-	IRIS	Pt-100	Show Product
MATIC Duo 90/150 18 E	194	302	5.28	18	18	15.85	58	45	-	-	194	-	IRIS	Pt-100	Show Product
MATIC Duo 90/150 18 H	194	302	5.28	18	18	15.85	102	45	-	-	194	-	IRIS	Pt-100	Show Product
CLASSIC Water TT-170 L 3 kW	194	32	1.32	3	-	5.02	42	30	-	-	194	-	MP-888	FeKo Typ J	Show Product
MATIC Water 90 18 E	194	32	5.28	18	-	15.85	58	50	130	-	194	-	IRIS	Pt-100	Show Product
MATIC Water 90 18 H	194	32	5.28	18	-	15.85	102	50	130	-	194	-	IRIS	Pt-100	Show Product
CLASSIC Water TT-1548 E 12 kW	194	32	5.28	12	-	15.85	58	5	-	-	158	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 E 6 kW	194	32	5.28	6	-	15.85	58	-	-	100	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 E 12 kW	194	32	5.28	12	-	15.85	58	-	-	100	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 E 18 kW	194	32	5.28	18	-	15.85	58	-	-	100	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 K 18 kW	194	32	10.57	18	-	31.70	62	-	-	260	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 K 27 kW	194	32	10.57	27	-	31.70	62	-	-	260	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 K 36 kW	194	32	10.57	36	-	31.70	62	-	-	260	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-108 K 45 kW	194	32	10.57	45	-	31.70	62	-	-	260	194	-	MP-888 or MP-988	FeKo Typ J	Show Product
MATIC Water 90 18 K	194	32	10.57	18	-	31.70	62	200	400	-	194	-	IRIS	Pt-100	Show Product
MATIC Water 90 27 K	194	32	10.57	27	-	31.70	62	200	400	-	194	-	IRIS	Pt-100	Show Product
MATIC Water 90 36 K	194	32	10.57	36	-	31.70	62	200	400	-	194	-	IRIS	Pt-100	Show Product
MATIC Water 90 45 K	194	32	10.57	45	-	31.70	62	200	400	-	194	-	IRIS	Pt-100	Show Product
CLASSIC Water TT-1500 W 48 kW	194	32	19.81	48	-	75.29	67	-	-	285	176	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 W 24 kW	194	32	18.49	24	-	66.04	65	-	400	-	158	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 W 48 kW	194	32	18.49	48	-	66.04	65	-	400	-	158	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 W 72 kW	194	32	26.42	72	-	66.04	65	-	400	-	158	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 W 96 kW	194	32	26.42	96	-	66.04	65	-	400	-	158	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 V 72 kW	194	32	26.42	72	-	153.22	59	-	400	-	176	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 V 96 kW	194	32	26.42	96	-	153.22	59	-	400	-	176	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1368 V 144 kW	194	32	26.42	144	-	153.22	59	-	400	-	176	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Water TT-1398 N 6 kW	284	32	-	6	-	29.06	73	20	-	-	32	-	MP-888	Feko Typ J	Show Product
CLASSIC Water TT-142 N 12 kW	284	32	-	12	-	29.06	73	60	-	-	32	-	MP-888	Feko Typ J	Show Product
CLASSIC Water TT-137 N 12 kW	284	32	-	12	-	29.06	73	50	-	60 at 50° C	32	-	MP-888	Feko Typ J	Show Product
CLASSIC Water TT-138 N 24 kW	284	32	-	24	-	29.06	73	70	-	60 at 60° C	32	-	MP-888	Feko Typ J	Show Product
CLASSIC Water TT-1358 W 24 kW	266	32	-	24	-	66.04	65	180	400 at 70° C	-	32	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Water TT-1358 W 48 kW	266	32	-	48	-	66.04	65	180	400 at 70° C	-	32	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Water TT-DW 160 9 kW	320	32	-	9	-	9.51	73	-	40 at 150° C	-	32	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Water TT-DW 160 18 kW	320	32	-	18	-	9.51	73	-	40 at 150° C	-	32	-	MP-888 or MP-988	Feko Typ J	Show Product
MATIC Water 160 12 B	320	32	-	12	-	19.81	94	65	-	60 at 50° C	32	-	IRIS	Pt-100	Show Product
MATIC Water 160 24 B	320	32	-	24	-	19.81	94	85	-	60 at 60° C	32	-	IRIS	Pt-100	Show Product
CLASSIC Oil TT-248 8 kW	32	392	2.11	-	8	26.42	80	20	-	-	392	-	MP-888	Feko Typ J	Show Product
CLASSIC Oil TT-288 8 kW	32	482	2.38	-	8	26.42	80	60	-	-	482	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-300 12 kW	32	572	2.38	-	12	26.42	80	60	-	-	554	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Oil TT-390 Z 16 kW	32	680	3.96	-	16	26.42	80	90	-	-	680	-	MP-888	Feko Typ J	Show Product
CLASSIC Oil TT-390 Z 24 kW	32	680	5.55	-	24	26.42	80	90	-	-	680	-	MP-888	Feko Typ J	Show Product
CLASSIC Oil TT-388 32 kW	32	680	7.13	-	32	26.42	80	160	-	-	680	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-388 48 kW	32	680	18.49	-	48	26.42	80	230	-	-	680	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-508 X 48 kW	32	572	19.81	-	48	68.68	58	480	-	-	572	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Oil TT-510 X 96 kW	32	572	33.02	-	96	68.68	58	480	-	-	572	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-708 Y 72 kW	32	572	26.42	-	72	132.09	58	600	-	-	572	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-708 Y 120 kW	32	572	52.83	-	120	132.09	58	600	-	-	572	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-708 Y 144 kW	32	572	52.83	-	144	132.09	58	600	-	-	572	-	MP-888 or MP-988	Feko Typ J	Show Product
CLASSIC Oil TT-407 Z 8 kW	32	464	2.91	-	8	26.42	80	67	143 at 80° C	-	446	-	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Oil TT-409 Z 24 kW	32	464	15.85	-	24	26.42	80	93	150 at 80° C	-	446	-	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Oil TT-410 X 48 kW	32	464	19.81	-	48	68.68	58	150	175 at 80° C	-	446	-	MP-888 or MP-988	Pt-100	Show Product
MATIC Oil 360 16	32	680	5.28	-	16	26.42	80	90	-	-	680	-	IRIS	Pt-100	Show Product
MATIC Oil 360 24	32	680	6.87	-	24	26.42	80	90	-	-	680	-	IRIS	Pt-100	Show Product
CLASSIC Oil TT-288/2 8 kW	32	482	4.23	-	8	26.42	80	60	-	-	392	-	MP-888 or MP-988	FeKo Typ J	Show Product
CLASSIC Oil TT-390/2 16 kW	32	680	7.93	-	16	26.42	80	90	-	-	680	-	MP-888	Feko Tpy J	Show Product
CLASSIC Oil TT-390/2 24 kW	32	680	11.10	-	24	26.42	80	90	-	-	680	-	MP-888	Feko Typ J	Show Product
CLASSIC Oil TT-390/2 36 kW	32	680	6.34	-	36	26.42	80	90	-	-	680	-	MP-888	FeKo Typ J	Show Product
MATIC Oil 360/2 16	32	680	7.93	-	16	26.42	80	90	-	-	680	-	IRIS	Pt-100	Show Product
MATIC Oil 360/2 24	32	680	11.10	-	24	26.42	80	90	-	-	680	-	IRIS	Pt-100	Show Product

	Cooling medium	Temperature range	Ambient temperature up to	Refrigerating agent	Heating switchable	Content water tank	Cooling capacity nominal	Max. pump pressure	Max. flow capacity	Max. flow capacity internal	Controller	Temperature sensor
Unit/designation		°F	°F		kW	l	kW	psi	gal	gal
CLASSIC Cool TT-5'500 E	Water	+ 10°C - + 40°C	+ 45°C	R-134a	5	25	5	65	75	-	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Cool TT-14'500 H	Water	+ 10°C - + 40°C	+ 45°C	R-134a	6	50	14	123	75	-	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Cool TT-28'500	Water	+ 10°C - + 40°C	+ 45°C	R-134a	9	150	28	73	145	-	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Cool TT-54'500	Water	+ 10°C - + 40°C	+ 45°C	R-134a	12	250	54	90	250	-	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Cool TT-108'000	Water	+ 10°C - + 40°C	+ 45°C	R-134a	-	360	108	87	100/200	200	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Cool TT-216'000	Water	+ 10°C - + 40°C	+ 45°C	R-134a	-	600	216	73	200/400	500	MP-888 or MP-988	Pt-100	Show Product
CLASSIC Cool TT-300'000	Water	+ 10°C - + 15°C		-	-	-	300	-	600	-	MP-888	-	Show Product
